DESCRIPTION

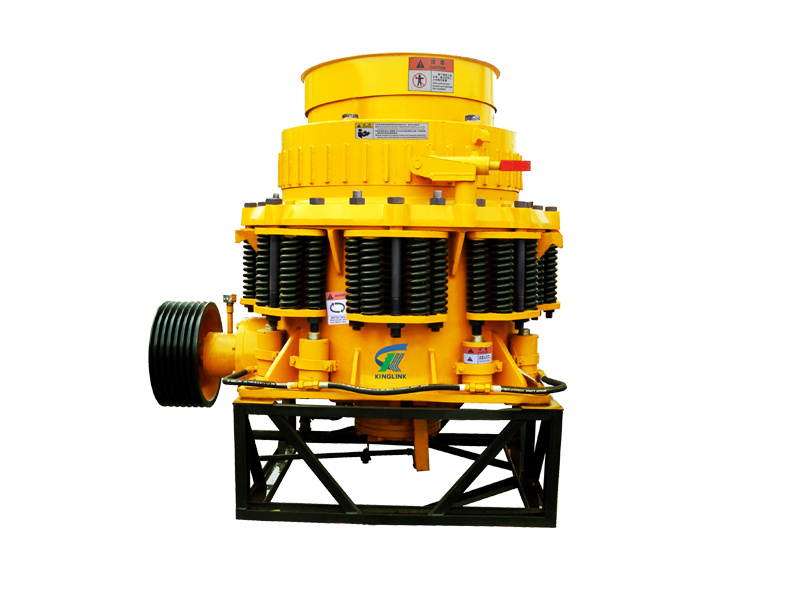

The HPY series multi-cylinder hydraulic Cone Crusher is characterized by a combination of large crushing force, large eccentricity, high crushing frequency and crushing cavity design, which not only improves the production capacity and product quality, but also expands the application range. Whether for medium, fine or superfine crushing, you can find the best solution from the HPY series multi-cylinder hydraulic cone crushers.

Advantages & Characteristics

Advanced design and superior performance
——to improve long-term efficient production ability
Excellent material and workmanship
——to improve equipment quality, reduce operating costs and risks
Intelligent control, laminating crushing
——to increase crushing fineness and crushing efficiency
Hydraulic clearing, modular components
——to ensure high equipment operation rate, low maintenance cost and easy maintenance

Main Technical Parameters

Model	Cavity	Min. of discharge size (mm)	Max. feed size (mm)	Power (kw)	Weight (t)	The capacity (t/h)in different discharge size (mm)
Model	Cavity	Min. of discharge size (mm)	Max. feed size (mm)	Power (kw)	Weight (t)	6	8	10	13	16	19	22	25	32	38	45	51
HPY200	X	13	95	160	11.4	55-75	60-90	80-115	110-145	130-170	140-180	150-190	160-210	180-230	200-245
	Z	16	120
	C	19	190
HPY300	X	13	105	220	17.4	80-95	100-130	110-140	145-185	175-220	190-240	200-260	220-280	240-320	290-380	340-440
	Z	16	150
	C	19	215
	CC	25	230
HPY400	X	13	110	315	24.5		115-150	130-175	180-230	220-280	240-320	260-340	280-370	310-430	350-490	400-550	450-620
	Z	20	200
	C	25	250
	CC	30	300
HPY500	X	16	135	400	34.4		140-170	170-220	225-290	270-350	310-400	335-430	355-450	395-530	435-600	500-680	560-760
	Z	22	210
	C	30	290
	CC	38	330
HPY800	X	16	220	630	63			235-330	300-420	370-500	420-540	450-590	480-710	530-780	580-920	560-1000	750-1150
	Z	25	265
	C	32	300
	CC	38	350
