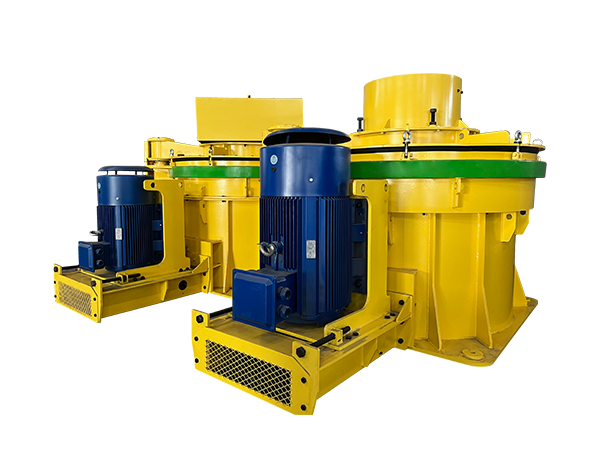

KV Vertical Shaft Impact Crusher
Product Classification:
Phone:
E-mail:
Skype:
Whatsapp:
Details Introduction
KV vertical shaft impact crushers are high performance crushing machines. Unlike compression crushers, KV crushers accelerate rock to high speeds, breaking it along its natural fracture lines with high energy impacts. This reduces the wear on the crusher while still producing high quality shaped aggregates and manufactured sand.
Advantages & Characteristics
- The type and gradation of sand making are reasonable
- The fineness modulus is controllable between 2.5-3.5
- "Rock on rock"crushing cavity, high-quality out products
- Not only oil temperature can be monitored, but also automatically shut-down can be achieved to better protect machine
- "Rock on iron"crushing cavity,high efficiency in crushing
Main Technical Parameters
|
Model |
Max. feed size (mm) |
Weight (t) |
Power (kw) |
Operating Speed (r/min) |
Production Range (t/h) |
Rotor Size (mm) |
Rotor Port Configurations |
|---|---|---|---|---|---|---|---|
|
KV65-ROR-SD |
40 |
9.5 |
160 |
1800-2700 |
60-100 |
635 |
4 |
|
KV85-ROR-SD |
50 |
13 |
250 |
800-1800 |
150-250 |
813 or 889 |
5 or 6 |
|
KV85-ROR-DD |
50 |
14.5 |
2x132 |
800-1800 |
150-250 |
813 or 889 |
5 or 6 |
|
KV85-ROS-SD |
40 |
15 |
315 |
800-1650 |
100-300 |
889 |
6 |
|
KV85-ROS-DD |
40 |
16.5 |
2x160 |
800-1650 |
100-300 |
889 |
6 |
|
KV85-SOS-SD |
90 |
15.5 |
315 |
800-1400 |
100-300 |
889 |
4 |
|
KV85-SOS-DD |
90 |
17 |
2x200 |
800-1400 |
100-400 |
889 |
4 |
|
KV95-ROR-SD |
50 |
13.5 |
315 |
800-1800 |
220-300 |
889 or 1016 |
4,5 or 6 |
|
KV95-ROR-DD |
50 |
16.5 |
2x315 |
800-1800 |
220-500 |
889 or 1016 |
4,5 or 6 |
|
KV95-ROS-SD |
50 |
16 |
315 |
800-1650 |
180-350 |
889 |
6 |
|
KV95-ROS-DD |
50 |
19 |
2x315 |
800-1650 |
180-550 |
889 |
6 |
|
KV95-SOS-SD |
125 |
19.5 |
315 |
800-1400 |
100-550 |
1067 |
4 or 6 |
|
KV95-SOS-DD |
125 |
22.5 |
2x315 |
800-1400 |
100-550 |
1067 |
4 or 6 |
Capacity/throughput based on continuous regulated feed of clean, dry normal hardness with a bulk density of 1.6 ton/m³ .
Capacity may vary +/-25%with the size and nature of the rock and the working conditions of the plant.
Keyword:
vertical shaft impact crusher
