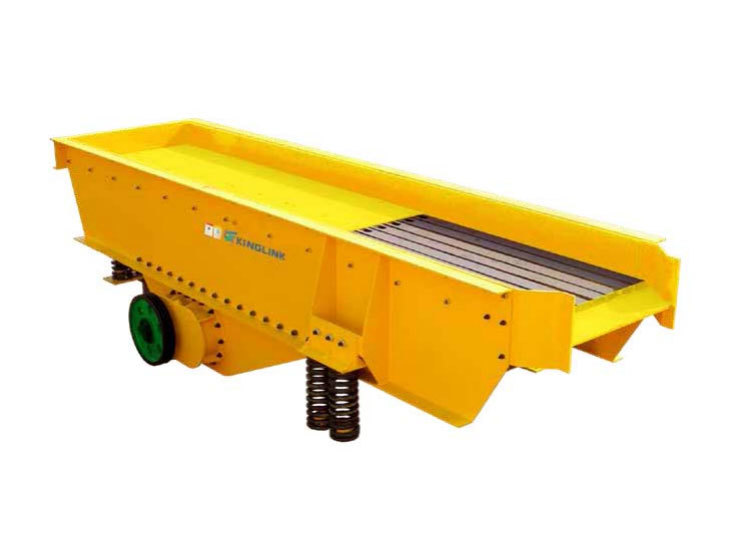

ZSW Vibrating Feeder
ZSW Vibrating Feeder
Phone:
E-mail:
Skype:
Whatsapp:
- DESCRIPTION
-
The feeder manufactured by our company is a linear feeder, which has the characteristics of stable vibration, reliable work, long working life and so on. It can feed the materials continuously and evenly into crushers and screens. It it widely used in crushing and screening process in the industry of aggregates, ores, minerals , building materials, silicates and chemical industries.
Advantages & Characteristics
- Adjustable bar gap
- Rivet locking
- Adjustable feeding rate
- Special bars for preventing blocking
Main Technical Parameters
Model Chute size (mmxmm) Max.feed size
(mm)Capacity (t/h) Eccentric shaft rotation speed
(r/min)Power
(kw)Weight
(t)Overall dimension
LxWxH(mm)ZSW-380×96 3800×960 500 100-160 500-720 11 4.21 3900×1700×1400 ZSW-490×110 4900×1100 580 120-280 500-800 15 5.41 5260×1780×1330 ZSW-590×110 5900×1100 600 200-350 500-800 22 6.05 5000×1650×1589 ZSW-600×130 6000×1300 600 600-700 600-850 30 6.4 6000×1841×1365 ZSW-600×150 6000×1500 1000 600-700 600-850 37 7.05 6000×2016×1636 ZSW-600×180 6000×1800 1000 600-800 500-800 45 11.8 6310×3370×2511 NOTE:The throughput listed in the table are for reference only. Real output capacity is influenced by the vibration feeder tilt angle, rod gap, vibration frequency, material type and actual situation on site.
WHAT CAN I DO FOR YOU
Pre-sale service
24 hours online
Free technical support and solutions
Factory visit anytime, free pick up
Sales service
Commit to delivery fast
Provide On-site installation service
Free training of product operation
After-sales service
365 days after-sales online
Solve customer feedback problems timely.
Help customers optimize and upgrade equipment
OUR PARTNERS
Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to multiple countries and regions around the world, including Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
