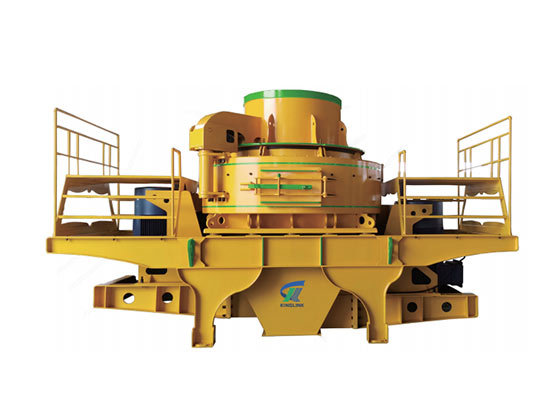

VSI Vertical Shaft Impact Crusher
VSI crusher is a new generation of vertical impact crusher. It adopts the unique structure and dilute oillubrication system, whereby the "heart" rotor can operate at a stable temperature and state continuously. It is a machine that is available for selective and mixed crushing in a range of 360°. Due to the extremely high speed of rotor impeller, it is more efficiency and energy saving.
Phone:
E-mail:
Skype:
Whatsapp:
- DESCRIPTION
-
VSI crusher is a new generation of vertical impact crusher. It adopts the unique structure and dilute oillubrication system, whereby the "heart" rotor can operate at a stable temperature and state continuously. It is a machine that is available for selective and mixed crushing in a range of 360°. Due to the extremely high speed of rotor impeller, it is more efficiency and energy saving.
Advantages & Characteristics
- 360°mixed crushing
- Extremely high rotation speed
- Unique oil lubrication system
- New generation design for impeller
Main Technical Parameters
Model Max. feed size (mm) Capacity (t/h) Motor power (kw) Rotation speed (r/min) Soft material Hard material Cascade and
center feedstockEntire center feedstock VSI-8522 40 35 200-260 100-130 90x2/110x2 1520-1690 VSI-9532 45 40 300-380 150-190 110x2/132x2/160x2 1360-1510 VSI-1145 50 45 450-520 225-260 220x2/250x2 1180-1310 VSI-1263 60 50 540-580 340-400 250x2/315x2 900-1200 Remarks: The above throughput is decided on the base of adequately and continuously feeding the limestone with compressive strength ≤150MPa and loose density 1.6t/m³.
